Make A Colorful Gantt Chart

EnigmaERP allows users to add colours to certain documents for better visual cues and representation. A good example of this would be the Event Calendar, where, for each event you can add a colour.

We will be doing so by customizing Tasks under Projects module.

Steps To Add Colours To The Gantt Chart#

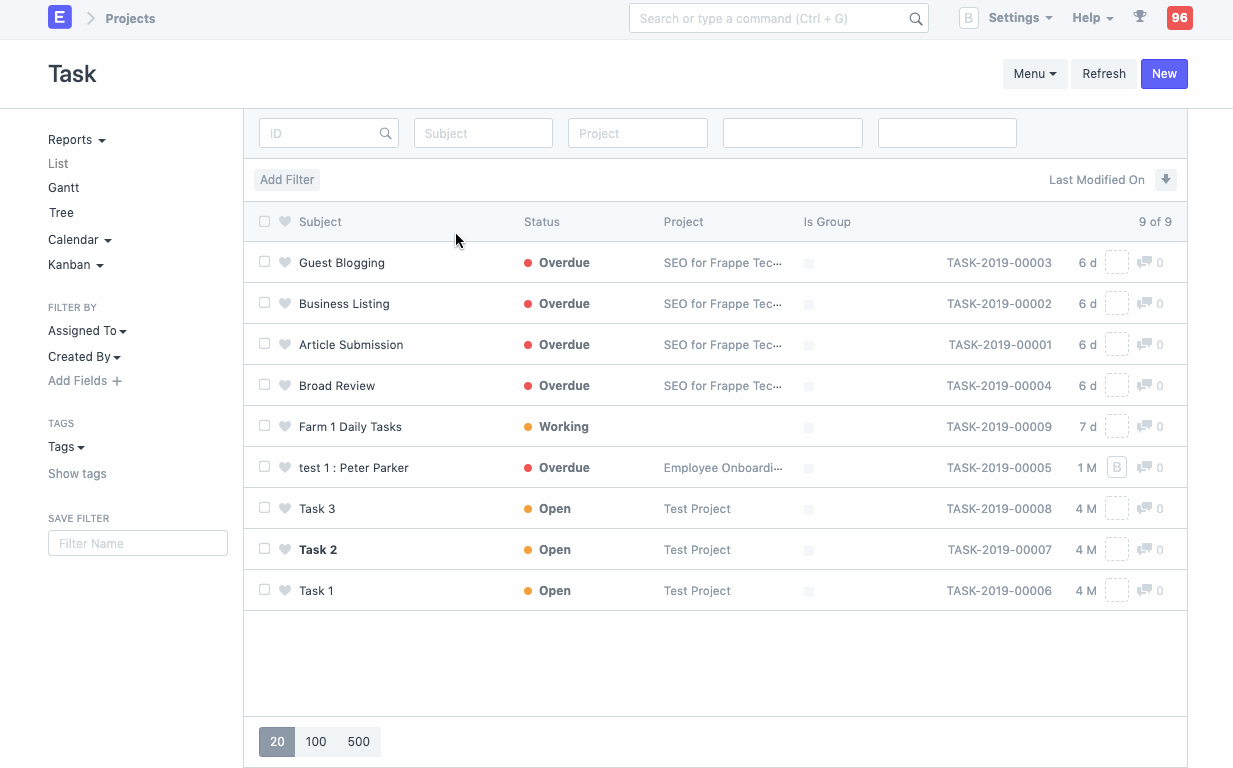

  1. Go to Customize Form in the system and select Task in Enter Form Type option. Alternatively, you can reach this screen by going to Menu > Customize from the Task list or form.

customize-form

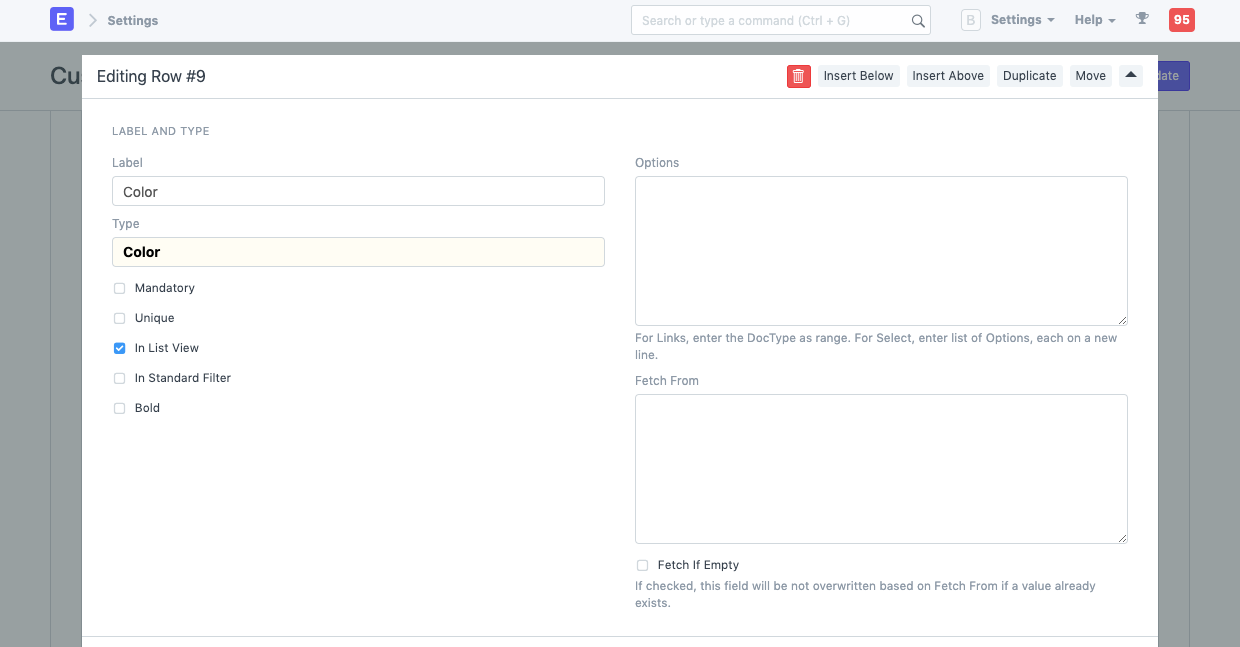

  1. Add a new field in the doctype of fieldtype color.
  2. Check In List View option.

customize-form

  1. Save the form, go back to the Task list, and reload.

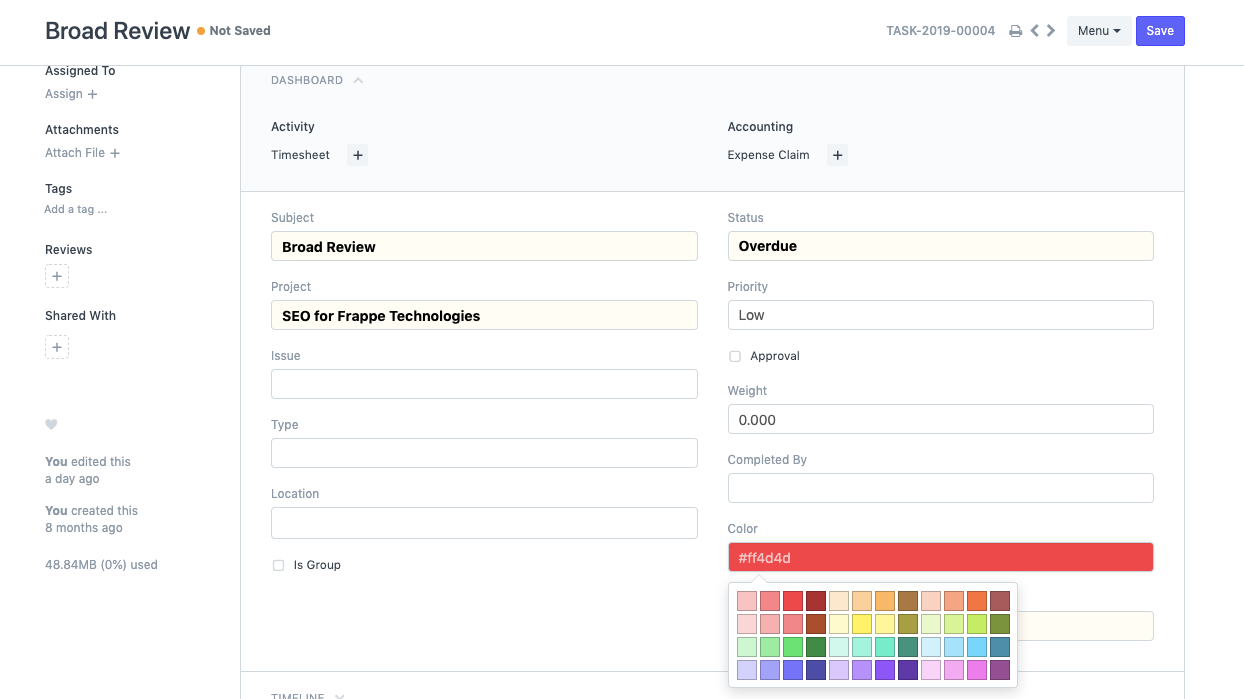

  2. When opening an existing or new Task, you should see a color field. Pick a color for the Task.

customize-form

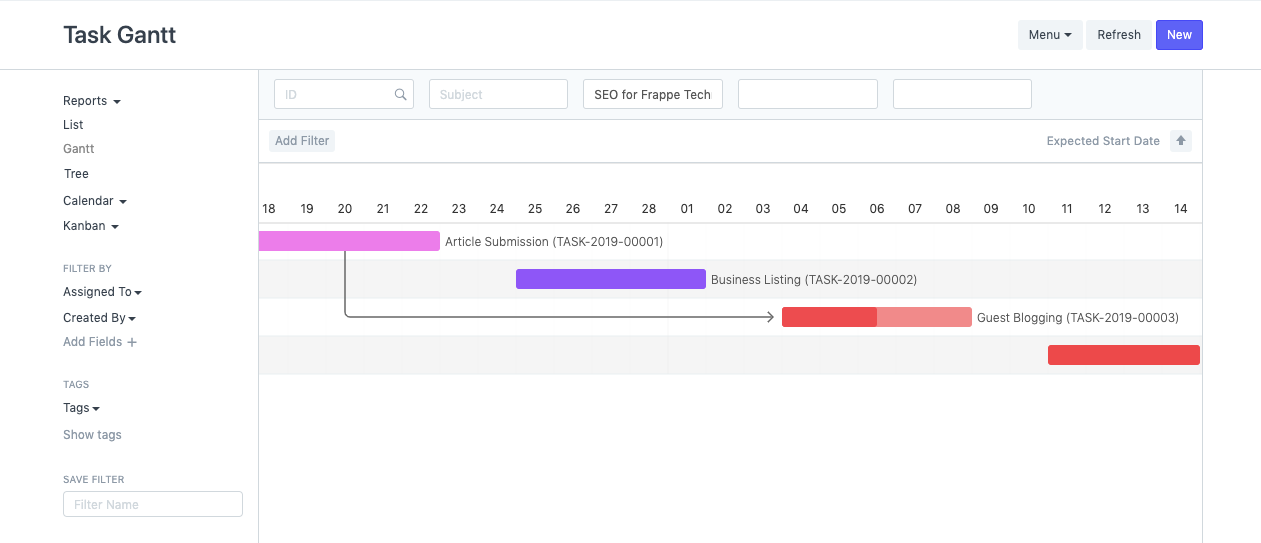

  1. Go back to the Task list and switch to Gantt view.

customize-form
